An air compressor manual is kind of like a fine bourbon; it gets better with age. However, finding a manual for a specific model can lead you on an Indiana Jones treasure hunt. Our air compressor manual library might not be as old as Raiders of the Lost Ark, but it expands everyday. The AIRMATE-USB was designed by Radio Broadcast professionals along with the D&R design team and is intended to be used 24 hours per day as an “On-Air” mixer and/or a production console in the most demanding production room. We are confident that you will be using the AIRMATE-USB for many years to come, and wish you much success.
Airmate Hurricane 245/25 24L 2hp Oil Free Air Compressor 230V. This compressor is powerful and robust yet light, easy to transport and is oil free. The crankcase and head are made of aluminium and the unit features a strong plastic cover to protect all internal parts. Ideal for professionals and serious DIY users look. Central Pneumatic 30 Gallon, 180 PSI Gas Powered Two-Stage Air Compressor Manual (53 pages). 30 gallon, 180 psi gas powered two-stage air compressor.
Compressed air drying is an essential and is an important part of air treatment process. Compressed air contains water, dirt, wear particles, bacteria and even degraded lubricating oil. All these impurities mix together to form an abrasive sludge. This sludge is often acidic and accelerates wear and tear of tools, pneumatic machinery, block valves and orifices. This results in costly air leaks and high maintenance. It also corrodes pipes and can bring production process to a standstill. Only compressed air that is totally clean and dry will ensure reliable working of compressed air systems and maximum savings. The favored method of drying the compressed air is through refrigeration dryers.
Elgi offers a reliable solution through Elgi Airmate Refrigerant Air Dryers. The dryers ensure longer life of compressed air systems through efficient removal of the condensate and contaminants
Emglo 5 Hp Air Compressor
- High Efficiency Thermal Mass Technology
- Microprocessor Based Digital Dew Point Controller
- 100% Modulating Cycle Controller
- Electronic Auto Condensate Drain
- Ozone Friendly Refrigerant
- Compact
- Low Pressure Drop
| ELGI Model | Flow Capacity Scfm | Max. Working Pressure M3/min psi | Nominal Power Consumption (Air & Water) HP | Compressed Air Connections | Cooling Media | Dimensions Length (in) Width (in) Height (in) | Gross Weight (Air & Water) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Power Supply: 1Ph/115V/60Hz | ||||||||||
| EGRD010 | 10 | 0.28 | 232 | 0.25|-- | 3/8' NPT | Air | 12.2 | 13.6 | 17.1 | 46-- |
| EGRD015 | 15 | 0.42 | 232 | 0.27|-- | 3/8' NPT | Air | 12.2 | 13.6 | 17.1 | 55-- |
| EGRD020 | 20 | 0.57 | 232 | 0.28-- | 1/2' NPT | Air | 14.6 | 20.2 | 18.7 | 60-- |
| EGRD030 | 35 | 0.99 | 232 | 0.38-- | 1/2' NPT | Air | 14.6 | 20.2 | 18.7 | 67-- |
| EGRD040 | 50 | 1.42 | 232 | 0.40-- | 1/2' NPT | Air | 14.6 | 20.2 | 18.7 | 76-- |
| EGRD050 | 65 | 1.84 | 232 | 0.44-- | 1/2' NPT | Air | 14.6 | 20.2 | 18.7 | 84-- |
| EGRD080 | 75 | 2.12 | 203 | 0.60-- | 1” NPT | Air | 13.5 | 16.5 | 29.1 | 84-- |
| EGRD100 | 100 | 2.83 | 203 | 0.93-- | 1' NPT | Air | 13.5 | 17.5 | 29.1 | 95-- |
| EGRD150 | 125 | 3.54 | 203 | 1.34-- | 1' NPT | Air | 13.5 | 17.5 | 29.1 | 97-- |
| EGRD175 | 150 | 4.25 | 203 | 1.40-- | 1' NPT | Air | 19.0 | 17.9 | 32.4 | 123-- |
| EGRD200 | 175 | 4.95 | 203 | 1.47-- | 1' NPT | Air | 21.8 | 22.8 | 34.8 | 146-- |
| Nominal Power Supply: 1Ph/230V/60Hz | ||||||||||
| EGRD150 | 125 | 3.54 | 203 | 1.40-- | 1' NPT | Air | 13.5 | 17.5 | 29.1 | 97-- |
| EGRD175 | 150 | 4.25 | 203 | 1.54-- | 1' NPT | Air | 19.0 | 17.9 | 32.4 | 123 |
| EGRD200 | 175 | 4.95 | 203 | 1.60-- | 1' NPT | Air | 21.8 | 22.8 | 34.8 | 146-- |
| EGRD250 | 220 | 6.23 | 203 | 1.67-- | 1' NPT | Air | 21.8 | 22.8 | 34.8 | 150-- |
| EGRD300 | 300 | 8.49 | 203 | 2.01-- | 2” NPT | Air | 21.8 | 24.6 | 38.3 | 234-- |
| EGRD400 | 375 | 10.61 | 203 | 2.95-- | 2” NPT | Air | 21.8 | 24.6 | 38.3 | 239-- |
| EGRD500 | 480 | 13.58 | 203 | 3.08-- | 2' NPT | Air | 26.1 | 28.5 | 43.5 | 362 |
| Nominal Power Supply: 3Ph/460V/60Hz | ||||||||||
| EGRD600 | 600 | 17.00 | 203 | 3.55 | 3.04 | ANSI 3”#150 | Air | Water | Air | 35.0 | 39.3 | 62.5 | 529 | 496 |
| EGRD750 | 800 | 22.60 | 203 | 4.35 | 3.91 | ANSI 3”#150 | Water | 35.0 | 39.3 | 62.5 | 534 | 500 |
| EGRD900 | 900 | 25.40 | 203 | 5.22 | 4.55 | ANSI 3”#150 | Air | Water | 35.0 | 39.3 | 62.5 | 606 | 564 |
| EGRD1100 | 1000 | 28.30 | 203 | 6.16 | 5.02 | ANSI 3”#150 | Air | Water | 35.0 | 39.3 | 62.5 | 608 | 567 |
| EGRD1254 | 1250 | 35.30 | 203 | 7.50 | 6.57 | ANSI 3”#150 | Air | Water | 35.0 | 39.3 | 62.5 | 686 | 635 |
| EGRD1552 | 1500 | 42.40 | 203 | 8.58 | 6.70 | ANSI 3”#150 | Air | Water | 44.6 | 49.0 | 68.8 | 1021 | 950 |
| EGRD1750 | 1750 | 49.50 | 203 | 10.05 | 7.91 | ANSI 3”#150 | Air | Water | 44.6 | 49.0 | 68.8 | 1186 | 1098 |
| EGRD2000 | 2000 | 56.60 | 203 | 11.50 | 9.65 | ANSI 3”#150 | Air | Water | 44.6 | 49.0 | 68.8 | 1190 | 1102 |
| EGRD2900 | 2500 | 70.70 | 203 | 13.10 | 11.26 | ANSI 3”#150 | Air | Water | 44.6 | 49.0 | 68.8 | 1349 | 1239 |

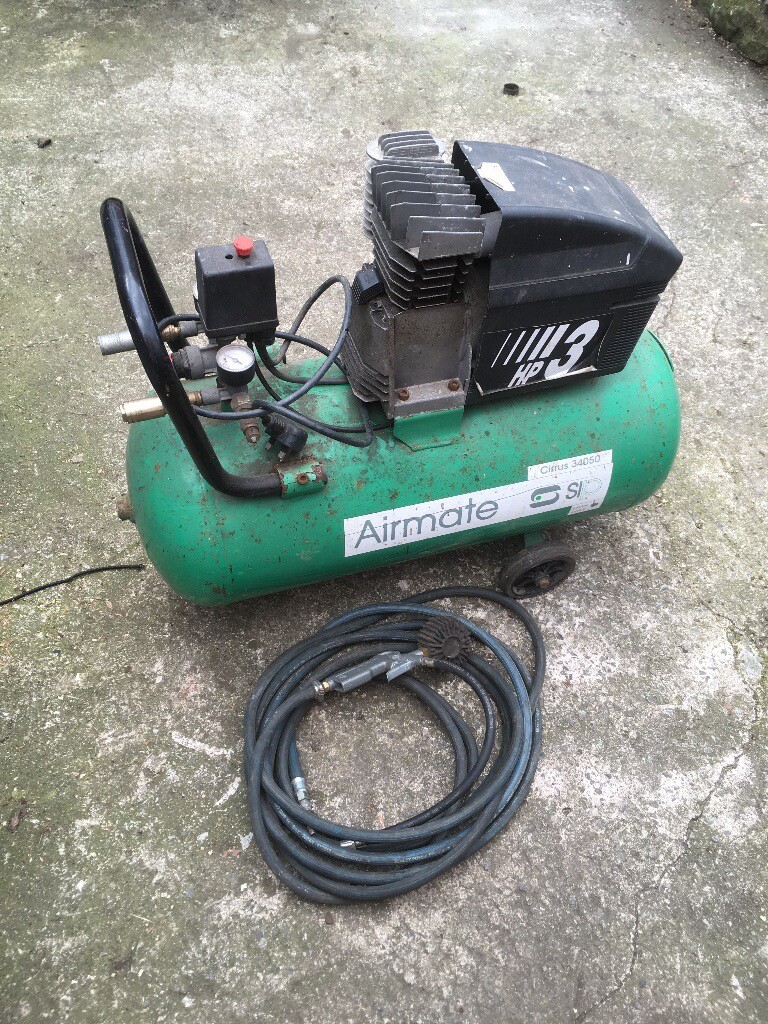

Sip Airmate Compressor
- Reference Condition for Inlet flow capacity: 1. Ambient Temperature – 100°F / 2. Inlet compressed air temperature 100°F / 3. Inlet Pressure – 100 psig.
- All data mentioned above is measured according to ISO 7183, with standard voltages, at 38-41° F dew point.
- High pressure dryers and high ambient temperature dryers are available on request.
- Standard scope of supply includes only electronic drain valves up to EGRD500 & zero loss drains from EGRD600.
